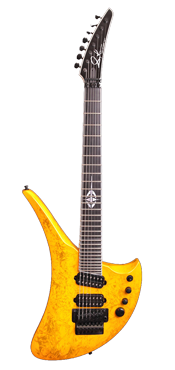

Turbulence 729-R
The next generation of our cutting edge Turbulence model captures our thoughts on extending conventional instrument’s limited range. Built around 7 strings and 29 frets platform, the 729-R sports tonal qualities of a warm sounding mahogany body and stability of a 5pc laminated maple/walnut set neck construction. Bound ebony fingerboard is decorated with a true Mother of Pearl 12th fret “North Star” inlay and it features scalloped 19-29 section. Two GKG wound 7 string humbuckers are wired through independent VCS controls (variable coil splitting) offering unique combinations of fine tuned pickup values. Recessed Floyd Rose 7 and ergonomic shape of the Turbulence body provide for shredding experience of a lifetime. If detuned to an F#, the 729-R will cover a full range of a regular 8-string 24-fret instrument.
The 729-R concept may not be for everyone but if you believe that your chops are ready to be ported to a different dimension, the 729-R was created for you.
See Specifications + Expand
CONSTRUCTION
Set neck construction
25.5” Scale (648 mm)
Average weight is 7 pounds (3 Kg)
HEADSTOCK
Turbulence headstock design with 3ply binding (w/b/w)
Black finish with white “Gary Kramer Original” signature logo
Headstock adjustable 2 - way truss rod
Headstock mounted OFR - String Bar
Truss rod cover (black)
NECK
5pc laminated Hard Maple/ Walnut with smooth Satin Finish
Turbulence 7 string “D” shape neck profile
0.800" 1st fret neck thickness (20.4 mm)
0.920" 12th fret neck thickness (23.4 mm)
R-48 Locking nut 1.890” (48 mm)
12" radius 3ply bound Ebony fingerboard (304.8 mm)
29 Jumbo 0.115" wide / 0.060" tall nickel silver frets (3 mm wide / 1.5 mm tall)
Scalloped fingerboard section 19-20-21-22-23-24-25-26-27-28-29
12th fret Mother of Pearl “Turbulence” inlay
BODY
Ergonomic Turbulence contour shape with Mahogany cor
Lower horn body scoop for easier access to the Turbulence hyper register
Additional leg rest unit
PICKUPS & ELECTRONICS
Direct mounted GKG Ceramic Bridge 7 string humbucker – Black color 23 K
Direct mounted GKG Ceramic Neck 7 string humbucker – Black color 20 K
500K Master Volume
3-way toggle pickup selector switch
Variable coil splitting knob for Bridge pickup – fully split 10.1 K Inner coil
Variable coil splitting knob for Neck pickup – fully split 9.5 K Inner coil
Fully shielded control cavity
HARDWARE
Black hardware
Recessed (floating) Floyd Rose 7 string Original
7 in line low profile tuners with black buttons (15:1 gear ratio)
Schaller style straplock buttons
Recessed Black control and tremolo cavity plates
Recessed jack design

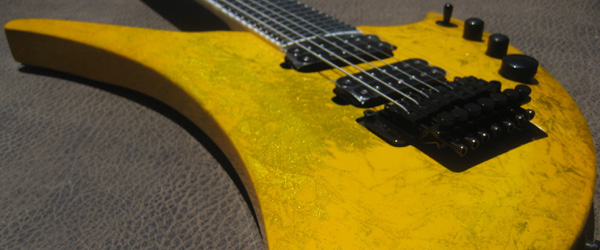

CUSTOM PAINT JOB -------- “MELTDOWN”
